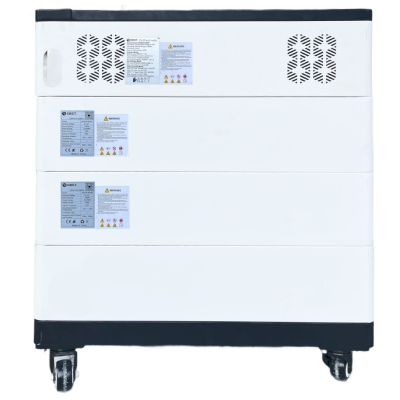

5KW+15KWh All-In-One Stackable Energy Storage System
Main Parameter
~ inverter Parameters
Max PV Power
6000W
Max PV input voltage
450V
MPPT voltage range
120~430V
Max PV charging current
100A
AC rated input-power
5000W
input Voltage / Current
210~240V/20A
AC rated output power / Current
5000W
AC Output Voltage / Current
210~240V /20A
Output frequencies
50 ~ 60Hz
efficiency
93%
~ Battery Parameters
Rated Power
5KWh*3
Battery type
LFP
Voltage range
42 ~ 58.6V
Max charging discharging current
50A / 100A
